SQLAlchemy is Python’s most popular SQL toolkit and Object-Relational Mapper (ORM).
I recently finished reading a SQLAlchemy 2.0 book. This post is a collection of notes and examples that I want to revisit later
Setup using Docker
I used SQLAlchemy with PgSql here
services:
db:
image: 'postgres:17.5-alpine'
ports:
- '5432:5432'
container_name: postgres-container
environment:
POSTGRES_DB: retrofun
POSTGRES_USER: retrofun
POSTGRES_PASSWORD: admin
TZ: Asia/Kolkata
volumes:
- 'postgres_data:/var/lib/postgresql/data'
restart: unless-stopped
healthcheck:
test:
- CMD
- pg_isready
- '-p'
- '5432'
- '-U'
- retrofun
interval: 10s
timeout: 5s
retries: 5
pgadmin:
image: dpage/pgadmin4
container_name: pgadmin_ui
ports:
- '8080:80'
environment:
- PGADMIN_DEFAULT_EMAIL=admin@admin.com
- PGADMIN_DEFAULT_PASSWORD=admin
volumes:
- 'admin_data:/var/lib/pgadmin'
depends_on:
- db
restart: unless-stopped
postgresql_exporter:
image: prometheuscommunity/postgres-exporter
container_name: postgresl_exporter
ports:
- '9187:9187'
environment:
DATA_SOURCE_NAME: 'postgresql://retrofun:pgsadmin@db:5432/retrofun?sslmode=disable'
depends_on:
db:
condition: service_healthy
restart: unless-stopped
volumes:
postgres_data: null
admin_data: null
erDiagram
customers {
int customer_id PK
varchar first_name
varchar last_name
varchar email UK
}
customer_profiles {
int profile_id PK
int customer_id UK
varchar phone_number
text shipping_address
int loyalty_points
}
products {
int product_id PK
varchar product_name
decimal price
int stock_quantity
}
orders {
int order_id PK
int customer_id
timestamp order_date
varchar status
}
order_items {
int order_id PK
int product_id PK
int quantity
decimal unit_price
}
customers ||--|| customer_profiles : "has"
customers ||--o{ orders : "places"
orders ||--o{ order_items : "contains"
products ||--o{ order_items : "included in"
SQL Code:: Sample Data
-- =========================================================
-- 1. CUSTOMERS (base table)
-- =========================================================
INSERT INTO customers (
customer_id,
first_name,
last_name,
email
)
VALUES
(1, 'Arun', 'Kumar', 'arun.kumar@email.com'),
(2, 'Priya', 'Raman', 'priya.raman@email.com'),
(3, 'Vikram', 'Subramaniam','vikram.s@email.com'),
(4, 'Divya', 'Narayanan', 'divya.n@email.com'),
(5, 'Karthik', 'Selvam', 'karthik.s@email.com'),
(6, 'Meena', 'Balaji', 'meena.balaji@email.com'),
(7, 'Suresh', 'Pandian', 'suresh.p@email.com'),
(8, 'Lakshmi', 'Krishnan', 'lakshmi.k@email.com'),
(9, 'Ganesh', 'Murugan', 'ganesh.m@email.com'),
(10, 'Anitha', 'Rajendran', 'anitha.r@email.com'),
(11, 'Deepak', 'Chandran', 'deepak.c@email.com'),
(12, 'Kavya', 'Venkatesh', 'kavya.v@email.com'),
(13, 'Ramesh', 'Iyer', 'ramesh.iyer@email.com'),
(14, 'Sowmya', 'Natarajan', 'sowmya.n@email.com');
-- =========================================================
-- 2. CUSTOMER_PROFILES (1:1 with customers)
-- Each customer_id appears at most once here -> enforces 1:1
-- Note: customer 4 (Divya) intentionally has NO profile,
-- showing that 1:1 here is "zero-or-one" on the profile side.
-- =========================================================
INSERT INTO customer_profiles (
profile_id,
customer_id,
phone_number,
shipping_address,
loyalty_points
)
VALUES
(101, 1, '+91-9840012345', '12 Anna Nagar, Madurai, TN', 250),
(102, 2, '+91-9940098765', '45 Gandhi Road, Chennai, TN', 500),
(103, 3, '+91-9791122334', '7 Mount Road, Coimbatore, TN', 120),
(104, 5, '+91-9843311220', '22 Kamaraj Nagar, Madurai, TN', 80),
(105, 6, '+91-9944455667', '9 Race Course Road, Coimbatore, TN', 340),
(106, 7, '+91-9788899001', '18 Bharathi Street, Trichy, TN', 0),
(107, 8, '+91-9600112233', '3 Nehru Street, Salem, TN', 610),
(108, 9, '+91-9092233445', '55 Periyar Nagar, Madurai, TN', 45),
(109, 10, '+91-9345566778', '27 VOC Street, Tirunelveli, TN', 300),
(110, 11, '+91-9788123456', '14 Anna Salai, Chennai, TN', 150),
(111, 12, '+91-9445566990', '2 MG Road, Coimbatore, TN', 420),
(112, 13, '+91-9994411223', '31 Church Road, Madurai, TN', 90),
(113, 14, '+91-9843322110', '6 Lake View Road, Chennai, TN', 275);
-- customer 4 has no matching row -> 1:1 relationship intact
-- (if you inserted a second row with customer_id = 1, the
-- UNIQUE constraint on customer_id would reject it)
-- =========================================================
-- 3. PRODUCTS (base table for catalog)
-- =========================================================
INSERT INTO products (
product_id,
product_name,
price,
stock_quantity
)
VALUES
(201, 'Wireless Mouse', 499.00, 150),
(202, 'Mechanical Keyboard', 2999.00, 80),
(203, 'USB-C Hub', 1299.00, 200),
(204, 'Laptop Stand', 899.00, 100),
(205, 'Webcam 1080p', 1799.00, 60),
(206, 'Bluetooth Speaker', 1499.00, 120),
(207, 'External SSD 1TB', 5999.00, 50),
(208, 'HDMI Cable 2m', 349.00, 300),
(209, 'Gaming Mouse Pad', 399.00, 250),
(210, 'Noise Cancelling Headphones', 4499.00, 70),
(211, 'Portable Power Bank', 1299.00, 180),
(212, '27-inch Monitor', 15999.00, 40),
(213, 'Ergonomic Chair', 8999.00, 25),
(214, 'Desk Lamp LED', 699.00, 150),
(215, 'Wireless Charger', 1099.00, 100);
-- =========================================================
-- 4. ORDERS (1:Many with customers)
-- One customer -> many orders
-- =========================================================
INSERT INTO orders (
order_id,
customer_id,
order_date,
status
)
VALUES
(301, 1, '2026-07-01 10:15:00', 'Delivered'),
(302, 1, '2026-07-15 14:30:00', 'Shipped'), -- Arun's 2nd order
(303, 2, '2026-07-10 09:00:00', 'Pending'),
(304, 3, '2026-07-20 16:45:00', 'Delivered'),
(305, 3, '2026-07-25 11:20:00', 'Pending'),
(306, 5, '2026-07-02 08:30:00', 'Delivered'),
(307, 6, '2026-07-05 12:00:00', 'Pending'),
(308, 6, '2026-07-18 17:15:00', 'Shipped'), -- Meena's 2nd order
(309, 7, '2026-07-08 09:45:00', 'Delivered'),
(310, 8, '2026-07-11 13:20:00', 'Cancelled'),
(311, 9, '2026-07-14 10:10:00', 'Pending'),
(312, 10, '2026-07-16 15:50:00', 'Delivered'),
(313, 11, '2026-07-19 11:05:00', 'Shipped'),
(314, 12, '2026-07-22 14:40:00', 'Pending'),
(315, 5, '2026-07-27 09:25:00', 'Delivered'); -- Vikram's 2nd order
-- =========================================================
-- 5. ORDER_ITEMS (M:N junction between orders and products)
-- Each order can have many products, each product can appear
-- in many orders -> classic many-to-many via junction table
-- =========================================================
INSERT INTO order_items (
order_id,
product_id,
quantity,
unit_price
)
VALUES
(301, 201, 2, 499.00), -- Order 301 (Arun) - buys wireless mount
(301, 203, 1, 1299.00), -- Order 301 (Arun) - buys hub
(302, 202, 1, 2999.00), -- Order 302 (Arun again) - buys keyboard
(302, 205, 1, 1799.00), -- Order 302 (Arun again) - buys webcam
(303, 201, 1, 499.00), -- Order 303 (Priya) - buys mouse
(303, 204, 2, 899.00), -- Order 303 (Priya) - buys stand
(304, 202, 1, 2999.00), -- Order 304 (Vikram) - buys keyboard (same product as order 302)
(305, 201, 3, 499.00), -- Order 305 (Vikram again) - buys mouse
(305, 203, 1, 1299.00), -- Order 305 (Vikram again) - buys hub
(305, 204, 1, 899.00), -- Order 305 (Vikram again) - buys stand
(306, 206, 1, 1499.00), -- Karthik: Bluetooth Speaker
(307, 208, 3, 349.00), -- Meena: HDMI cables
(308, 210, 1, 4499.00), -- Meena: Headphones
(309, 207, 1, 5999.00), -- Suresh: External SSD
(310, 209, 2, 399.00), -- Lakshmi: Mouse pads (order cancelled)
(311, 211, 2, 1299.00), -- Ganesh: Power banks
(312, 212, 1, 15999.00), -- Anitha: Monitor
(313, 213, 1, 8999.00), -- Deepak: Ergonomic chair
(314, 214, 2, 699.00), -- Kavya: Desk lamps
(315, 206, 1, 1499.00); -- Karthik again: Bluetooth Speaker (same product as order 306)
```
1. Connecting to the Database
The Database URL SQLAlchemy connects to a database using a standard connection string format:
# {dialect}{+driver}://{username}:{password}@{hostname}:{port}/{database}
# Utilizing psycopg2 driver to connect to the retrofun database
url = "postgresql+psycopg2://retrofun:admin@localhost:5432/retrofun"
-

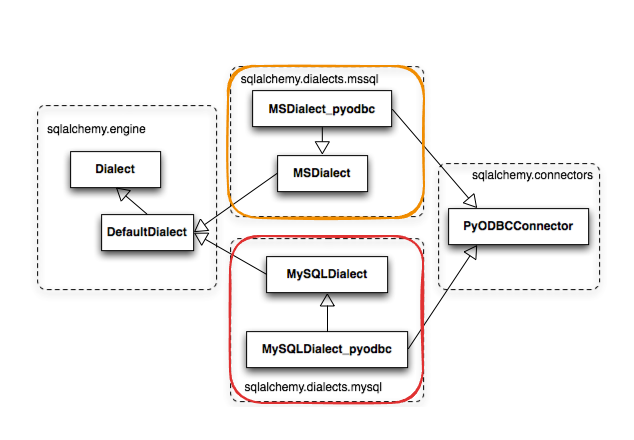

Dialect: The database system component that translates Python code into a specific database’s SQL syntax (e.g., postgresql, mysql, sqlite). like different dialect Tvl Tamil, Chennai Tamil. Everyone talks SQL but in different syntax
-
Driver: The underlying third-party Python library used to interact with the database (e.g., psycopg2)
2. Initalizing the Engine
The Engine manages database connections and connection pooling. It is initialized once when the application starts using create_engine()
import os
from dotenv import load_dotenv
from sqlalchemy import create_engine
load_dotenv()
# create_engine constructs the engine from the configuration URL
engine = create_engine(os.environ['DATABASE_URL'])
3. Core vs. ORM Architecture
SQLAlchemy splits its functionality into two layers:
- SQLAlchemy Core: Contains database integration logic, dialects, table schemas, and the SQL expression language. Uses Table instances explicitly.
- SQLAlchemy ORM (Object-Relational Mapping): Adds an abstraction layer mapping Python classes directly to database tables. Database operations are derived automatically from Python objects.
Architecture Strategy: Applications can combine Core and ORM functionalities to exploit both low-level control and high-level developer efficiency.
When you work with Core, you do it with Connection, When you work with ORM use Sessions
SQLAlchemy CORE
from sqlalchemy.types import TEXT,String,Integer,BLOB,Boolean,BOOLEAN,VARBINARY,VARCHAR,Double,Date,ARRAY,DateTime,Numeric,TIMESTAMP
from sqlalchemy.sql import text
from sqlalchemy.sql.expression import insert,join,label,func,exists,cte,column,case,between
from sqlalchemy.schema import Table,Index,MetaData,Column,ForeignKey,PrimaryKeyConstraint,CheckConstraint
from sqlalchemy.sql.ddl import CreateTable
from sqlalchemy.pool import Pool,QueuePool,StaticPool,AsyncAdaptedQueuePool
from sqlalchemy.engine import Row,URL,Result,Engine,Dialect,create_engine
from sqlalchemy.dialects.postgresql import array
from sqlalchemy.dialects import sqlite,postgresql
meta = MetaData()
customer = Table(
"customers", # plurals
meta,
Column("customer_id",Integer,primary_key=True),
Column("first_name",VARCHAR(50),nullable=False),
Column("last_name",String(50),nullable=False),
Column('email',String(100),nullable=False,unique=True),
Column("last_modified", DateTime, server_default=text("NOW()"))
)
engine = create_engine("sqlite:///:memory:", echo=True)
# Create all tables defined on Base.metadata
meta.create_all(engine)
SQLAlchemy ORM
When using the ORM, database tables are defined as Python classes inheriting from a shared declarative base class.
from sqlalchemy.orm import create_session,mapped_column,backref,relationship,DeclarativeBase,Mapped,join,selectinload
from sqlalchemy.types import Numeric,DateTime
from sqlalchemy.orm.query import Query
from sqlalchemy.orm.scoping import scoped_session
from sqlalchemy.orm.session import sessionmaker,close_all_sessions
from sqlalchemy.sql import text
from sqlalchemy.schema import Table,Index,MetaData,Column,ForeignKey,PrimaryKeyConstraint,CheckConstraint
from typing import Optional
meta = MetaData()
class Base(DeclarativeBase):
metadata = meta
class Customer(Base):
__tablename__ = "customers" # plurals
customer_id: Mapped[int] = mapped_column(primary_key=True)
first_name: Mapped[str] = mapped_column(nullable=False)
last_name: Mapped[str] = mapped_column(nullable=False)
email: Mapped[str] = mapped_column(unique=True, nullable=False)
profile: Mapped[Optional["CustomerProfile"]] = relationship( back_populates="customer", uselist=False ) # relationships
orders: Mapped[list["Order"]] = relationship(back_populates="customer")
def __repr__(self):
return f'Customer({self.customer_id}, "{self.last_name}")'
engine = create_engine("sqlite:///:memory:", echo=True)
# Create all tables defined on Base.metadata
Base.metadata.create_all(engine)
Conventions:
- Table Names (tablename): Plural and lowercase (e.g., ‘products’).
- Entity / Class Names: Singular and CamelCase (e.g., Product).
from sqlalchemy import String
from sqlalchemy.orm import DeclarativeBase, Mapped, mapped_column
# 1. Establish the base model class
class Model(DeclarativeBase):
pass
# 2. Define an entity model mapping to the 'products' table
class Product(Model):
__tablename__ = 'products'
id: Mapped[int] = mapped_column(primary_key=True)
name: Mapped[str] = mapped_column(String(64))
manufacturer: Mapped[str] = mapped_column(String(64))
year: Mapped[int]
country: Mapped[str] = mapped_column(String(32))
cpu: Mapped[str] = mapped_column(String(32))
p1 = Product(name='Alex in Wonderland', manufacturer='Alexander Babu') # Std python class constructor
4. Understanding DB MetaData
MetaData acts as the application’s database blueprint. It keeps a central record of structural design features (tables, columns, constraints, foreign keys) without holding the actual underlying data.
When using DeclarativeBase, Model.metadata automatically gathers these layout blueprints as models are declared:
Model.metadata (The Blueprint)
├── products (Table)
│ ├── id (Column, Primary Key)
│ └── name (Column)
└── users (Table)
├── id (Column, Primary Key)
└── username (Column)
# , use create_all(engine) to create it
Model.metadata ──► .create_all(engine) ──► Creates SQL Tables in Database
class Product(Model):
__tablename__ = 'products'
id: Mapped[int] = mapped_column(primary_key=True)
...
...
updated_date:Mapped[str]
Model.metadata.create_all(engine) # Doesn't create column as update_date
create_all() only creates tables that don’t already exist.
To recreate the table with incleded columns
# leads to Data loss
Model.metadata.drop_all(engine)
Model.metadata.create_all(engine)
[!NOTE] Instead of deleting tables, Alembic generates migration scripts.
example migration:
ALTER TABLE products
ADD COLUMN price INTEGER;
Benefits:
- keeps existing data
- tracks schema history
- allows upgrades and rollbacks
Production applications almost always use Alembic for schema changes.
Naming Conventions:
Different databases generate different names for constraints.
Instead of relying on database-generated names, define them yourself.
from sqlalchemy import MetaData
metadata = MetaData(
naming_convention={
"pk": "pk_%(table_name)s",
"fk": "fk_%(table_name)s_%(column_0_name)s_%(referred_table_name)s",
}
)
This makes migrations predictable across different databases.
Object Mapper
Inheritance Mapping
5. Session and sessionmaker
A Session is your application’s workspace or transaction window to the database. It handles the lifecycle of your Python objects and translates your operations into SQL queries.
The Unit of Work Pattern: The session keeps track of every object you create, modify, or delete. It doesn’t instantly send everything to the database; it holds them in memory until you flush or commit.
Short-Lived: A session is designed to be transient. You open it, execute a specific batch of work (like handling a single web request), and close it.
In Code How Works Together
import os
from sqlalchemy import create_engine
from sqlalchemy.orm import sessionmaker
import atexit
@atexit.register
def shutdown():
print("Closing database connection pool...")
# App Lifecycle Global Closures
engine = None
Session = None
def init():
"""Executes ONCE when the process spins up."""
global engine, Session
# Configure the engine alongside its implicit connection pool
engine = create_engine(
os.environ['DATABASE_URL'],
pool_size=20, # Keeps 20 active connections permanently warm
max_overflow=10 # Allocates up to 10 additional burst connections
)
# Establish a reusable factory template for creating light Session instances
Session = sessionmaker(bind=engine)
def run(request_data):
"""Executes on EVERY high-throughput request."""
# 1. Allocate an isolated session context
with Session() as session:
# 2. Open a precise transactional boundary
with session.begin(): # Safely auto-commits on success or auto-rolls back on error
# Perform atomic data adjustments here
# e.g., product = session.get(Product, request_data['id'])
pass
# 3. Context manager automatically closes the session.
# The network connection safely returns straight back to the engine's pool.
Scoped Session
Partitioning Strategies
SQL Write up
Follows SQLAlchemy 2.0 Style as using Context Manager way (recommended)
session = Session() # avoid
with Session() as session:
...
1. Query
from sqlalchemy import select
q = select(Product) # Represents: SELECT * FROM products
print(q)
q = select(Product.name, Product.manufacturer) # Selective Column queries
| Method | Returns | Behavior |
|---|---|---|
session.execute(q) |
Result iterator | Returns rows as tuples (even for single-column queries). |
.all() |
List | Pulls all remaining rows into a list. |
.first() |
First row / None |
Returns the first row; discards any remaining results. |
.one() |
First row | Returns exactly one row. Raises an exception if 0 or more than 1 row exists. |
.one_or_none() |
First row / None |
Returns one row or None. Raises an exception if more than 1 row exists. |
session.scalars(q) |
Scalar result iterator | Convenience wrapper that unwraps single-element tuples into raw values. |
2. Filtering
select(Product).where(Product.manufacturer == 'Commodore').where(condition2)
# or
.where(condition1,condition2)
from sqlalchemy import or_, and_, not_
select(Product).where(or_(Product.year < 1970, Product.year > 1990))
3. Sorting
.order_by()
.order_by(Product.year.desc())
.order_by(Product.year.asc())
5. Aggregation, Groupby
SQL Functions sqlalchemy.func
6. Pagination
7. Searching
Product.name.like('%Sinclair%') # case-sensitive
Product.name.ilike('%sinclair%') # insensitive
Product.year.between(1970, 1979) # between
Relationships
One-to-One Relationship
One-to-Many Relationship
Many-to-Many Relationship
Asynchronous SQLAlchemy
SQLAlchemy and Web
from sqlalchemy import create_engine, text, MetaData, Table, Column, Integer, String, insert, ForeignKey
from sqlalchemy.orm import declarative_base, sessionmaker, relationship # use classe that transalte to Table
#
sqlite_engine = create_engine('sqlite:///peoples.db',echo=True)
#
psql_engine = create_engine('postgresql+psycopg2://postgres:postgres@localhost:5432/peoplesdb',echo=True)
result = engine.execute("select 'hello world'")
print(result.fetchall())
with engine.connect() as conn:
result = conn.execute(text("select 'hello world'"))
print(result.all())
# Creation Meta Data
meta = MetaData()
people = Table("people", meta, Column('id',Integer,primary_key=True), Column('name',String,nullable=False), Column('age',Integer))
meta.create_all(engine)
#
