Service Mesh
WIP

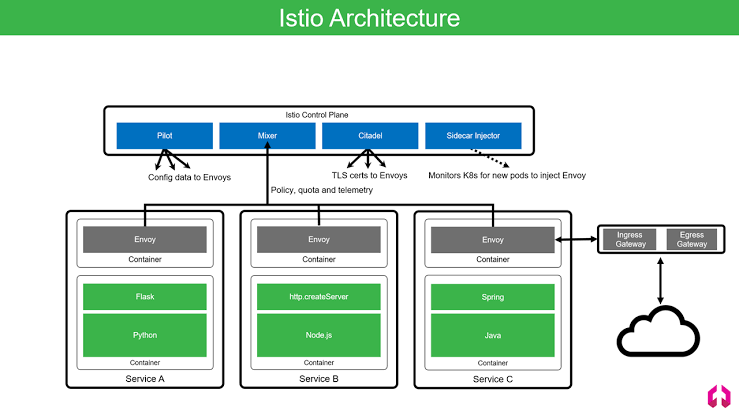

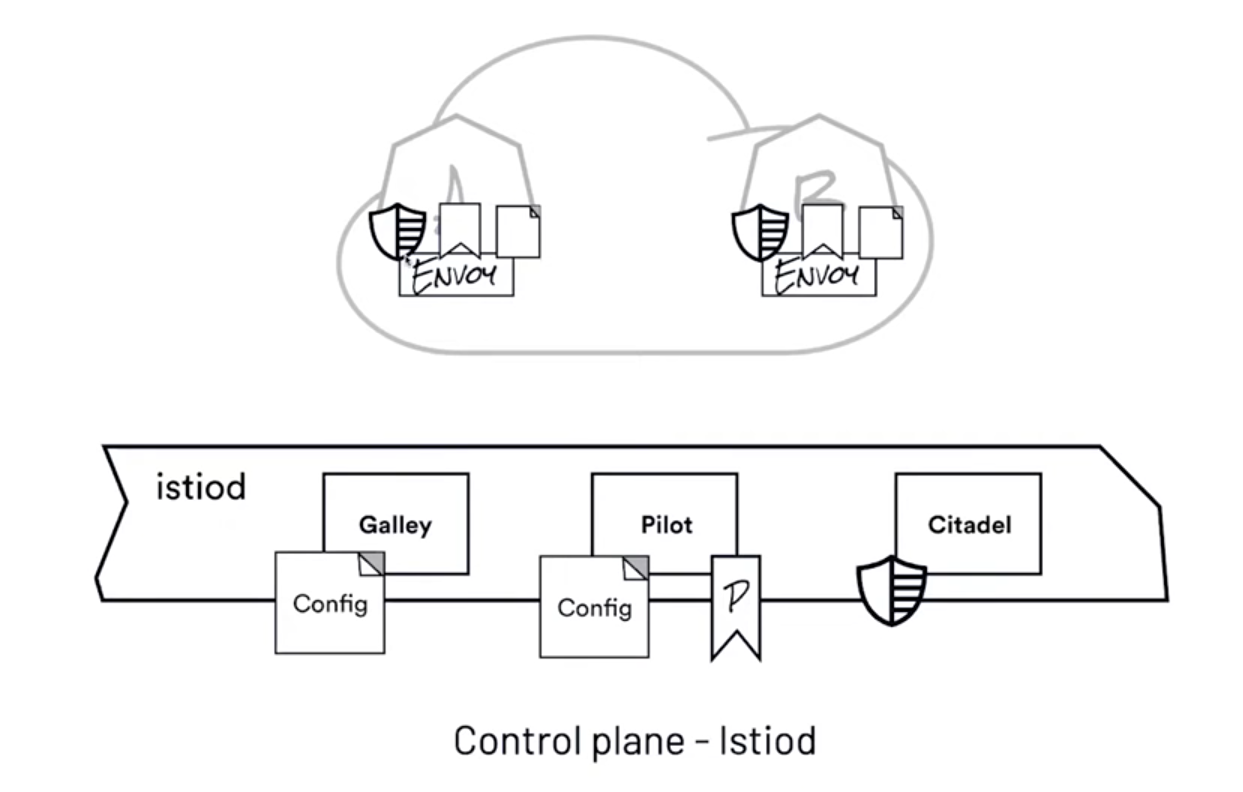

Istiod = Citadel + Pilot + Galley
- Citadel:: Manages certificate generation; assigns SPIFFE identities to enable secure communication
- Pilot:: distributes the validated networking configuration to each Envoy; Helps Service Discovery
- Galley:: Helps in validating incoming config files
Benefits:
- Istio can run on a variety of platforms like Kubernetes, Mesos, Nomad & Consul etc.
- Istio simplifies service-to-service network operations like traffic management, authorization, and encryption etc. also provides tracing, monitoring, and logging features as well
Installation
- Install with Istioctl
curl -L https://istio.io/downloadIstio | sh - cd istio-1.30.3 export PATH=$PWD/bin:$PATH - Istio Operator Install
- Install with Helm ```sh helm repo add istio https://istio-release.storage.googleapis.com/charts helm repo update
helm install istio-base istio/base -n istio-system –set defaultRevision=default –create-namespace helm status istio-base -n istio-system helm get all istio-base -n istio-system
helm ls -n istio-system
Istio comes with different [profiles](https://istio.io/latest/docs/setup/additional-setup/config-profiles/#deployment-profiles); demo profile includes istio-ingress, istio-egress and istiod
```sh
istioctl install --set profile=demo -y
# - Istio-Ingressgateway
# - Istiod ( Pilot + Citadel + Galley )
# - Istio-Egressgateway
istioctl verify-install # Shows Deployment, Roles, ServiceAccount, Service...etc
kubectl get pods -n istio-system
# - istio-egressgateway
# - istio-ingressgateway
# - istiod-865dcc765c
kubectl api-resources -o wide | grep istio
istioctl version
# starts with Side Cart Mode
kubectl label namespace default istio-injection=enabled #
istioctl analyze
kubectl get namespace default --show-labels
Sample Application
kubectl apply -f samples/booksinfo/platform/kube/bookinfo.yaml
kubectl get pods
Visualize with Kiali
kubectl apply -f samples/addons # install grafana, zipkin, kiali, loki jaeger
kubectl rollout status deployment/kiali -n istio-system
kubectl apply -f istio-1.20.8/samples/bookinfo/networking/bookinfo-gateway.yaml
# Redis Master Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-master
labels:
app: redis
role: master
version: "v2.8.22"
spec:
replicas: 1
selector:
matchLabels:
app: redis
role: master
template:
metadata:
labels:
app: redis
role: master
version: "v2.8.22"
spec:
containers:
- name: redis-master
image: redis:2.8.22
ports:
- name: redis-server
containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
name: redis-master
labels:
app: redis
role: master
spec:
ports:
- port: 6379
targetPort: redis-server
selector:
app: redis
role: master
---
# Redis Slave
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis-slave
labels:
app: redis
role: slave
version: "v2.8.22"
spec:
replicas: 2
selector:
matchLabels:
app: redis
role: slave
template:
metadata:
labels:
app: redis
role: slave
version: "v2.8.22"
spec:
containers:
- name: redis-slave
image: ibmcom/guestbook-redis-slave:v2
ports:
- name: redis-server
containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
name: redis-slave
labels:
app: redis
role: slave
spec:
ports:
- port: 6379
targetPort: redis-server
selector:
app: redis
role: slave
kubectl -n istio-system get svc istio-ingressgateway
kubectl -n istio-system get svc istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].nodePort}'
kubectl -n istio-system get svc kiali
istioctl dashboard kiali
---
apiVersion: v1
kind: Service
metadata:
labels:
app: kiali
app.kubernetes.io/instance: kiali
app.kubernetes.io/managed-by: Helm
app.kubernetes.io/name: kiali
app.kubernetes.io/part-of: kiali
app.kubernetes.io/version: v1.63.1
helm.sh/chart: kiali-server-1.63.1
version: v1.63.1
name: kiali
namespace: istio-system
spec:
type: NodePort
ports:
- appProtocol: http
name: http
port: 20001
protocol: TCP
targetPort: 20001
nodePort: 30007
- appProtocol: http
name: http-metrics
port: 9090
protocol: TCP
targetPort: 9090
nodePort: 30008
selector:
app.kubernetes.io/instance: kiali
app.kubernetes.io/name: kiali
---
apiVersion: v1
kind: Service
metadata:
labels:
component: server
app: prometheus-svc
release: prometheus
chart: prometheus-15.9.0
heritage: Helm
name: prometheus
namespace: istio-system
spec:
ports:
- name: http
port: 9090
protocol: TCP
targetPort: 9090
nodePort: 30009
selector:
component: "server"
app: "prometheus"
release: "prometheus"
type: NodePort
istioctl kube-inject -f YOUR_POD_DEFINITION.yaml
kubectl get mutatingwebhookconfigurations.admissionregistraion.k8s.io
# istalled as part of istio; and it'll istall side-car

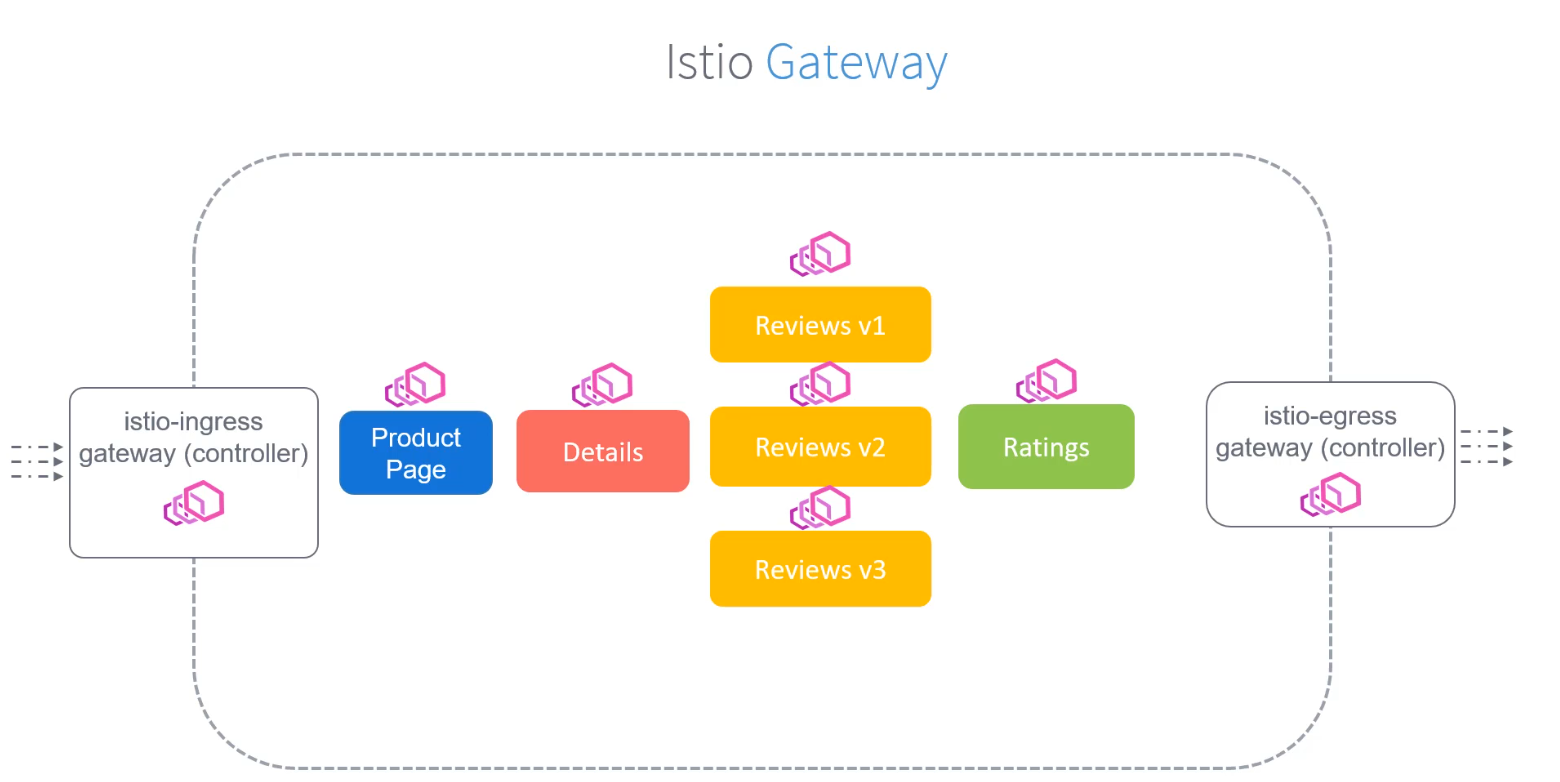

Istio Ingress
Configuring Ingress = Find the Gateway Resource + Route the traffic that hits the Gateway
kubectl get svc -n istio-namespace # LoadBalancer kubectl -n istio-system get svc istio-ingressgateway -o jsonpath=’{.status.loadBalancer.ingress[0].ip}’
# Nginx Ingress
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
name: ingress
spec:
rules:
- host: bookinfo.app
http:
paths:
- path: /
backend:
serviceName: productpage
servicePort: 8000
do curl on the gatway :( no response
apiVersion:
kind:
metadata:
name:
spec:
# this configuration is for ingressgateway pod
selector:
istio: ingressgateway
# below is configuration
servers:
- port:
number: 80
name: http
protocol: HTTP
hosts:
- "bookinfo.app"
do curl on gateway :( but got response as no routes I go follow on
Virutal Services
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
name: bookinfo
spec:
hosts:
- "bookinfo.app"
gateways:
- bookinfo-gateway
http:
- match:
- uri:
exact: /productpage
- uri:
prefix: /static
- uri:
exact: /login
- uri:
exact: /logout
- uri:
prefix: /api/v1/products
route:
- destination:
host: productpage # pod-name or # fqdn
subset:
- name: v1 # versions v1, v2, v3
labels:
version: v1 # pod labels
port:
number: 9080
weight: 100

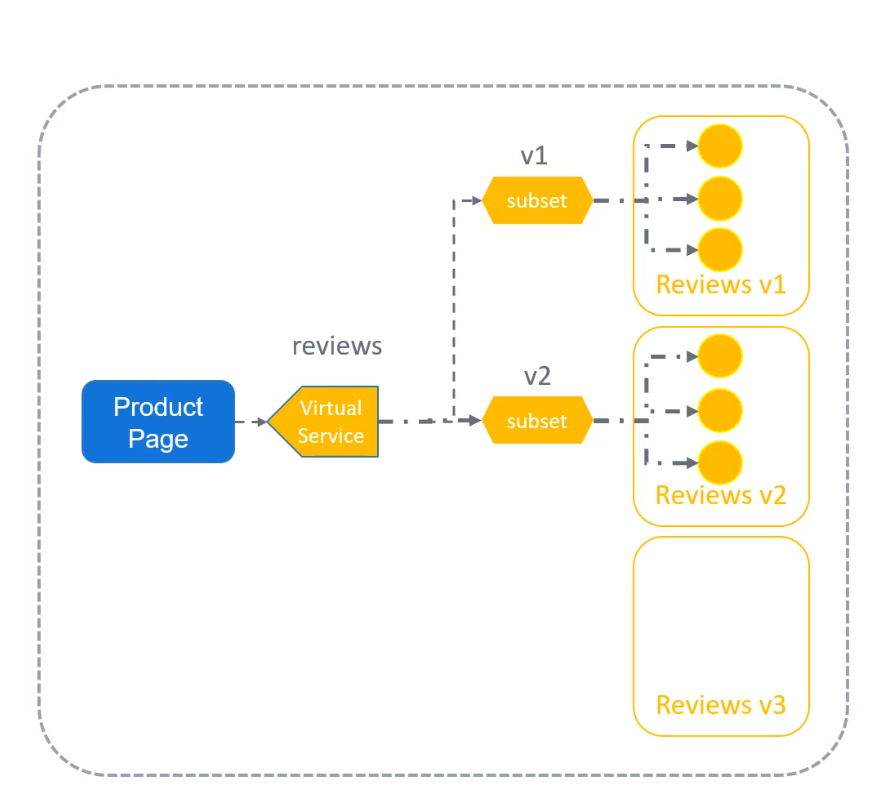

destination rules get applied after routing
how to see FQDN
kubectl exec -it
kubectl get vs # virtual services
kubectl get svc -A # Check External Ip
