Serving ML Models on Kubernetes with KServe

Deploying a trained model is often harder than training it. You need an API endpoint, autoscaling, health checks, request batching, and a way to handle both lightweight predictive models and heavyweight generative ones — without writing bespoke infrastructure for each. KServe solves this by giving you a standard, Kubernetes-native way to serve models of any kind.

This post walks through what KServe is, how it's architected, and how to install it and deploy your first models.

Prerequisites

• kubectl — configured with access to a Kubernetes cluster
• helm (v3+)
• A Kubernetes cluster (local via kind/minikube, or a managed cluster)

What Is Model Serving?

Model serving is the process of taking a trained model and making it usable in production. At a high level, it involves:

1. Loading the model into memory so it's ready to handle requests
2. Exposing an API endpoint (HTTP or gRPC) that clients can call
3. Handling the request lifecycle — preprocessing input, tokenization, running inference, and postprocessing output
4. Managing operational concerns — batching concurrent requests, health checks, and graceful restarts/rollouts Serving needs differ significantly depending on the type of model:

This distinction matters because a serving platform built only for one type (say, small scikit-learn models) won't scale well to something like an LLM — and vice versa.

Why KServe?

A few realities make model serving on Kubernetes genuinely hard to do by hand:

• Models are resource-hungry. GPUs and large memory footprints are the norm, especially for generative models.
• Scale is unpredictable. Traffic can spike or drop suddenly, and you need to scale (including to/from zero) without manual intervention.
• You rarely run just one model. Most real deployments serve many models, often of different frameworks and formats.

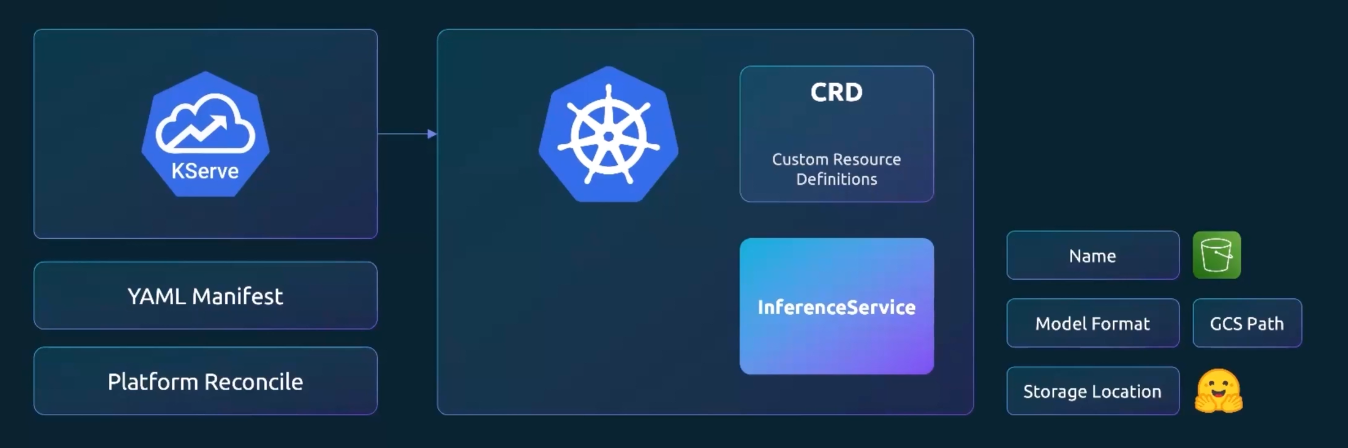

• Open-weight models don't simplify serving. Downloading a model from Hugging Face is the easy part — production-grade serving (batching, routing, autoscaling, observability) is still on you. KServe addresses this by providing a Kubernetes Custom Resource Definition (CRD), InferenceService, that abstracts away the deployment details. You describe what you want to serve; KServe handles how.

Kserve Architecture

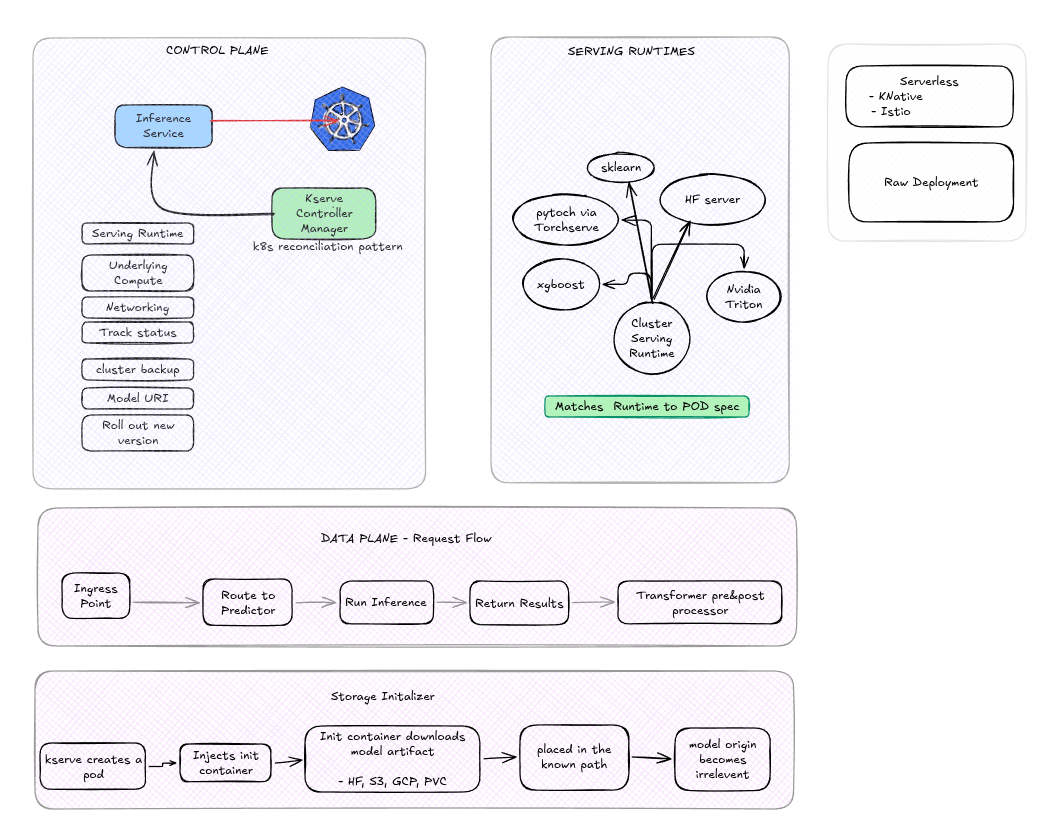

KServe sits on top of Kubernetes and (optionally) a service mesh/ingress layer, and is built around a controller that reconciles InferenceService resources into running deployments.

Core components:

Installation

KServe is installed via Helm in three layers: CRDs, the core controller, and runtime configs.

# kserve-crds:: Core KServe CRDs ( InferenceService, TrainedModel )
helm install kserve-crd oci://ghcr.io/kserve/charts/kserve-crd --version v0.19.0

# custom resource definitions:: LLM-specific LLMInferenceService
helm install kserve-llmisvc-crd oci://ghcr.io/kserve/charts/kserve-llmisvc-crd --version v0.19.0

# install kserve
# -- no Istio Service mesh or ingress controller::  avoids requiring Istio/Knative — runs as plain Kubernetes Deployments
helm install kserve oci://ghcr.io/kserve/charts/kserve-resources --version v0.19.0 --namespace kserve --create-namespace --set kserve.controller.deploymentMode=RawDeployment

Verify the controller is up

# Check Status
kubectl rollout status deployment/kserve-controller-manager -n kserve

# install runtime configs
# - servingruntime.enabled=true ;; Serving runtimes are opt-in
helm install kserve-runtime-configs oci://ghcr.io/kserve/charts/kserve-runtime-configs \
    --version v0.19.0 \
    --namespace kserve \
    --set kserve.servingruntime.enabled=true \
    --set kserve.controller.gateway.disableIstioVirtualHost=true \
    --set kserve.controller.gateway.disableIngressCreation=true

helm status kserve-runtime-configs -n kserve
helm get all kserve-runtime-configs -n kserve

kubectl get pods -n kserve

kubectl get crds | grep kserve
kubectl get clusterservingruntimes

Deploying Your First Models

1. Namespace

kserve-inference namespace created.

# kserve_ns.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: kserve-inference

2. Qwen2 model as generative-model example.

# qwen2_small.yaml
apiVersion: serving.kserve.io/v1beta1
kind: InferenceService
metadata:
    name: qwen-model
    namespace: kserve-inference
spec:
    predictor:
        model:
            modelFormat:
                name: huggingface
            storageUri: "hf://Qwen/Qwen2.5-0.5B-Instruct"
            args:
                - --backend=huggingface
            resources:
                requests:
                    cpu: "1"
                    memory: "2Gi"
                limits:
                    cpu: "2"
                    memory: "6Gi"

3. Sklearn Iris model as predictive model example.

# iris.yaml
apiVersion: serving.kserve.io/v1beta1
kind: InferenceService
metadata:
    name: sklearn-iris
    namespace: kserve-inference
spec:
    predictor:
        model:
            modelFormat:
                name: sklearn
            storageUri: https://storage.googleapis.com/kfserving-examples/models/sklearn/1.0/model/model.joblib

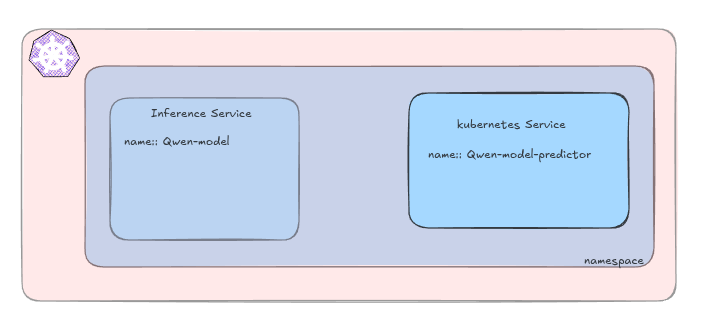

The KServe controller watches InferenceService objects, picks the matching ClusterServingRuntime for the model format, provisions the necessary compute, wires up networking, and reports status back — following the standard Kubernetes reconciliation pattern.

# Wait for the model to become ready
kubectl wait --for=condition=Ready --timeout=10m inferenceservice/sklearn-iris -n kserve-test
kubectl describe pod/PODSNAME -n kserve-test
kubectl get deployment,service -n kserve-test

# port forwarding
kubectl port-forward -n kserve-test svc/sklearn-iris-predictor 8080:80


# check
kubectl get inferenceservice qwen-model -n kserve-inference
kubectl get pods -n kserve-inference -w

Calling the Inference API

KServe's generative model runtimes expose an OpenAI-compatible chat completions endpoint:

POST /openai/v1/chat/completion
- modelname
- list_of_messages
- max_tokens

# call api
curl -s http://localhost:8080/openai/v1/chat/completions -H "Content-Type: application/json" -d '{"model":"qwen-model", "messages":"{"role":"user","content":"What is Kserve?"}", "max_tokens":100 }' | jq

Uninstall

helm uninstall kserve --namespace kserve
helm uninstall kserve-runtime-configs --namespace kserve
helm uninstall kserve-crd
helm uninstall kserve-llmisvc-crd

Conclusion

KServe gives you a single, declarative interface (InferenceService) for serving both lightweight predictive models and heavyweight generative ones on Kubernetes — without hand-rolling autoscaling, batching, or health-check logic yourself. Once the controller and runtimes are installed, deploying a new model is often just a matter of writing a short YAML manifest pointing at a model artifact.
